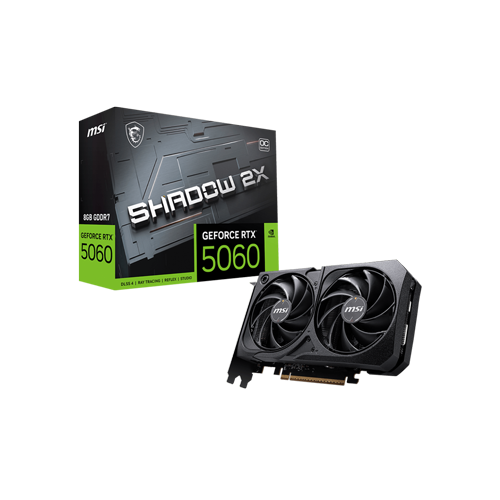

MSI Geforce RTX 5060 Shadow 2X OC 8GB GDDR7X

Specifications

MARKETING NAME

GeForce RTX™ 5060 8G SHADOW 2X OC

MODEL NAME

G5060-8S2C

GRAPHICS PROCESSING UNIT

NVIDIA® GeForce RTX™ 5060

INTERFACE

PCI Express® Gen 5 x16 (uses x8)

CORE CLOCKS

Extreme Performance: 2535 MHz (MSI Center) Boost: 2527 MHz

CUDA® CORES

3840 Units

MEMORY SPEED

28 Gbps

MEMORY

8GB GDDR7

MEMORY BUS

128-bit

OUTPUT

DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP SUPPORT

Supported

POWER CONSUMPTION

145 W

POWER CONNECTORS

8-pin x 1

RECOMMENDED PSU

550 W

CARD DIMENSION (MM)

197 x 120 x 40 mm

WEIGHT (CARD / PACKAGE)

493 g / 814 g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

G-SYNC® TECHNOLOGY

Supported

DIGITAL MAXIMUM RESOLUTION

Up to 7680 x 4320 (8K)

WARRANTY

03 Years Hardware Warranty
